In the description Via delle Volte Dipinte is assumed to be running from south to north, along the east side.
 |

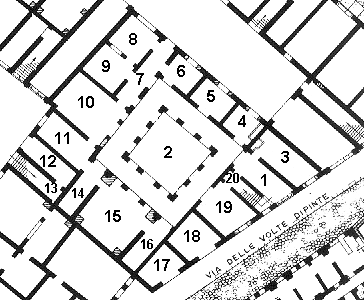

| Plan of the ground floor of the Casa delle Muse. |

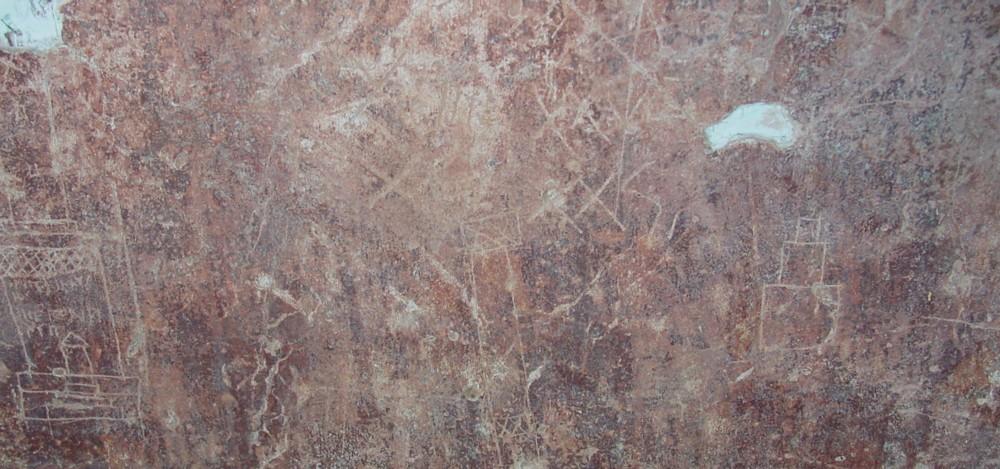

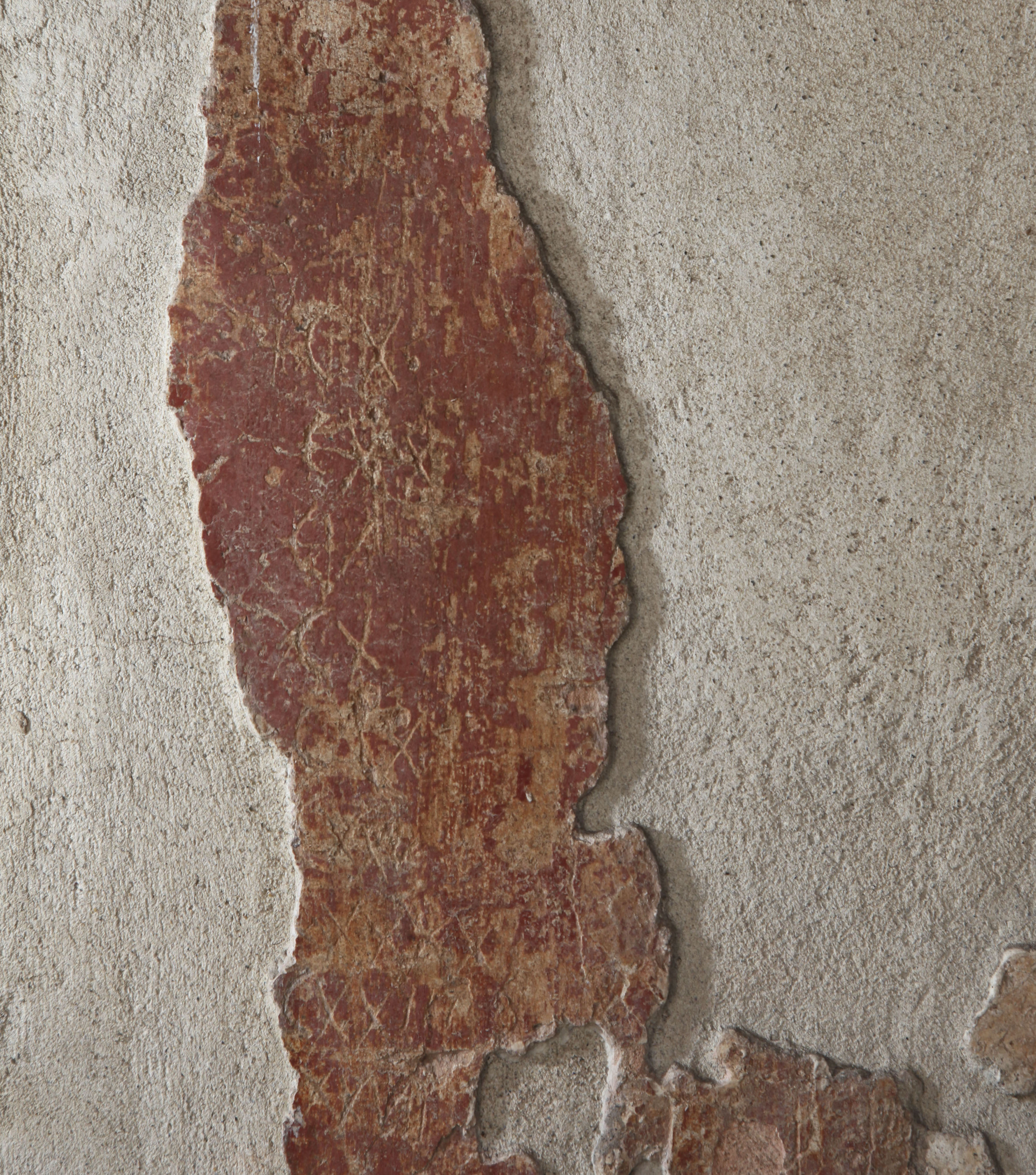

G0743 - NUMBERS SURROUNDED BY MONUMENTS (A, B, C, D, E)
- Porticus, east wall, against room 20: numbers in the centre.
To the left: Trajan's column (A).
Above: a lighthouse, presumably of Alexandria (B).
Below: a column (C).
To the right: a lighthouse, presumably a simplified version of the lighthouse of Portus (D).
To the left of Trajan's column (not visible on the photo): a lighthouse, presumably a simplified version of the lighthouse of Portus (E).

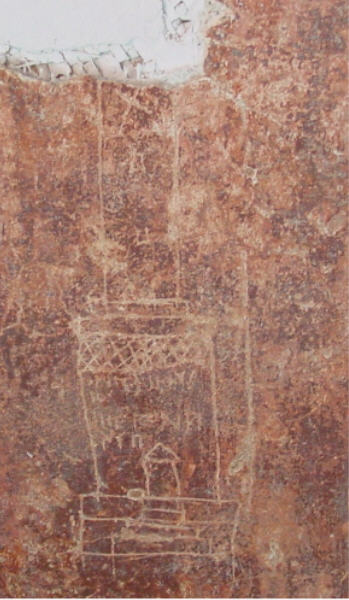

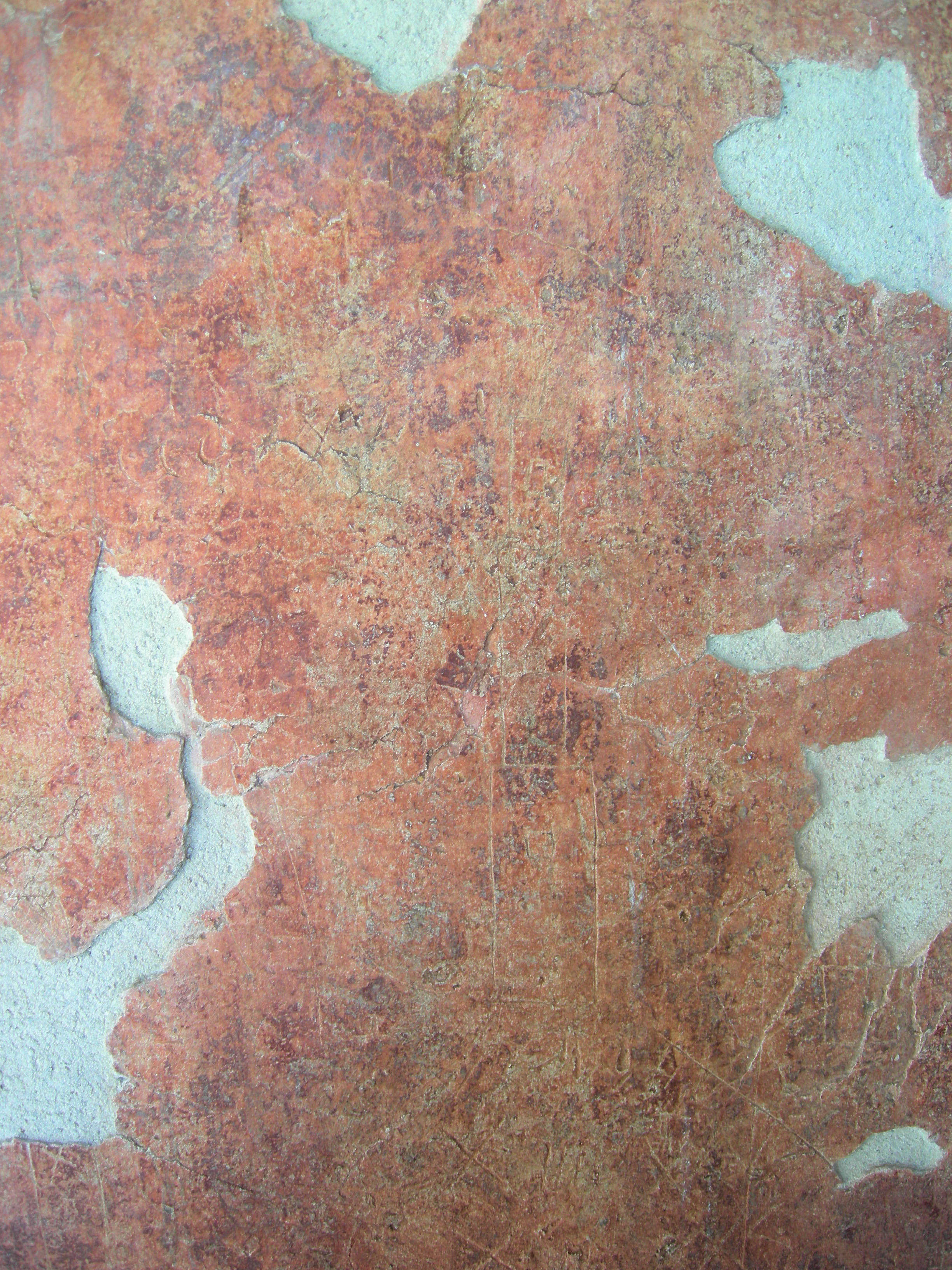

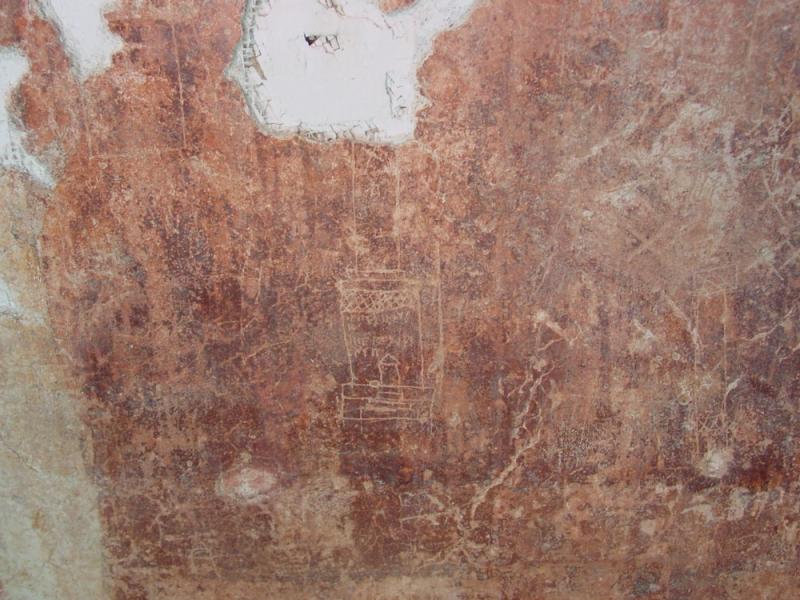

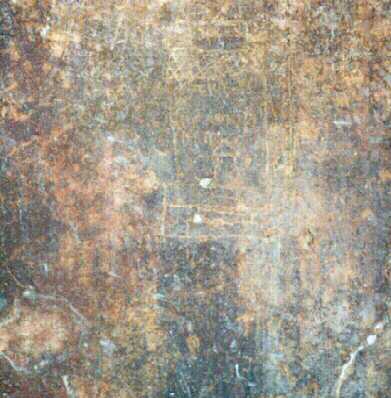

G0228 - TRAJAN'S COLUMN (A)
- Porticus, east wall, against room 20. H. 0.33, w. 0.07. In the lower part the text: PVTE[olanus?] | H | HIERON PI | NXIT. An X and two windows on the shaft. Upper part damaged in the early 21st century.
- Calza - Nash 1959, 25: "On the western wall of the porticoed corridor someone called Hieron, of Greek origin, has signed the oldest, perhaps unique, depiction of Trajan's Column in Rome, drawn with great care and precision. The Ostia lighthouse is drawn several times with varying degrees of success and, on the same wall, a careful hand has minutely drawn a kind of small board divided into squares, more or less like our modern game of chess".
- Felletti Maj - Moreno 1967, 62 n. 54.
- Solin 1967, Tav. 57b.
- Langner 2001, nr. 2285.
Interpretation: the interpretation as Trajan's column rests on the base with a door. For the text on the base has been proposed: "Hieron from Puteoli 'painted it' ". Line 1 could also start with PVTES. This line ends with a number, perhaps LXXXX (the height of the column is 29,78 m, or 100 feet). Line 2 seems to have two characters.

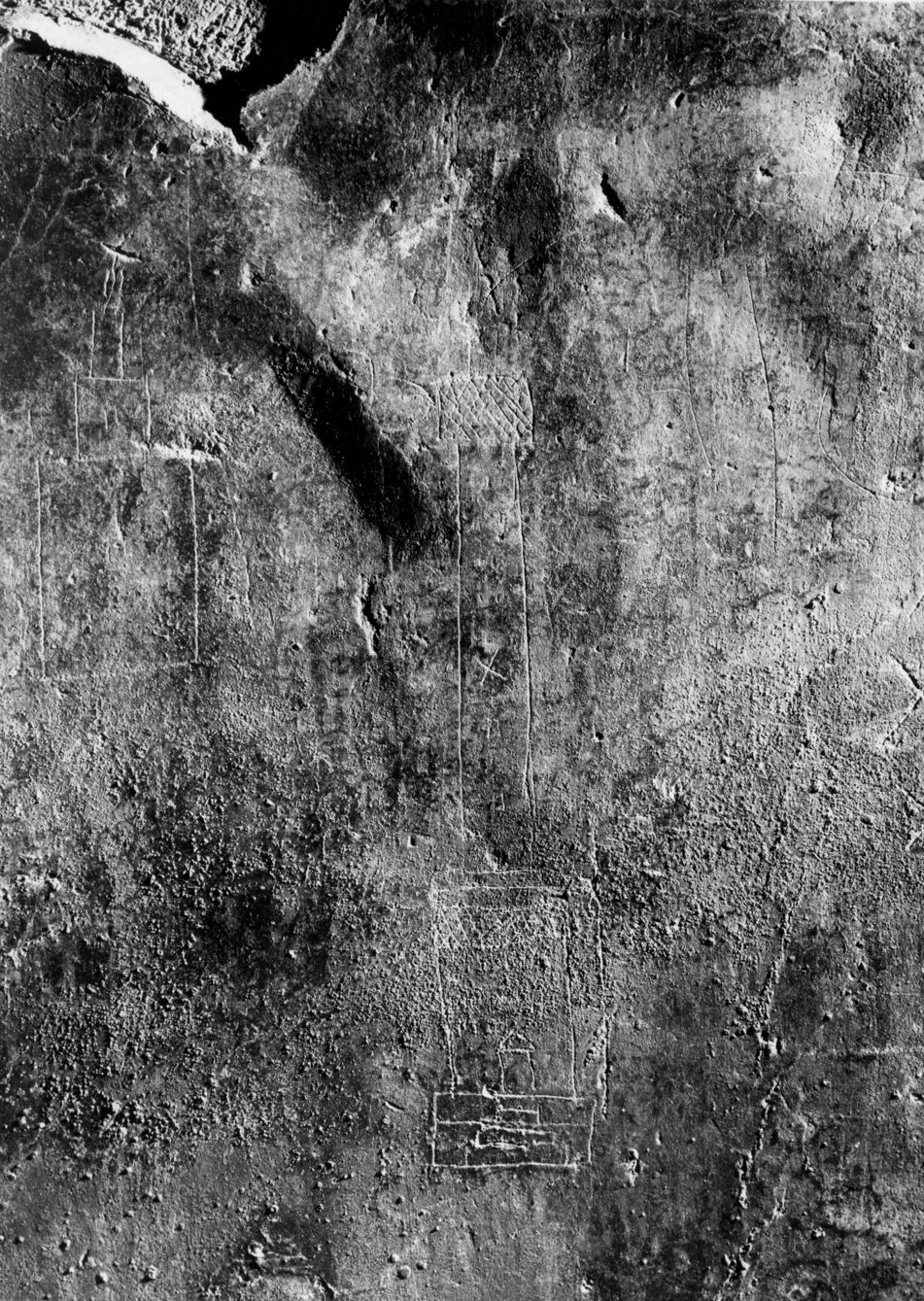

- ICCD N005281
- Solin

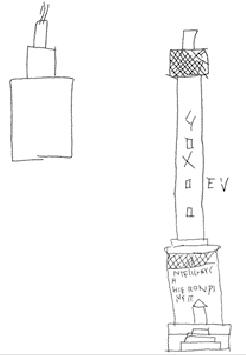

- Langner
- Eric Taylor
- Eric Taylor
- Eric Taylor
- Animation, Eric Taylor
- Harp 2015

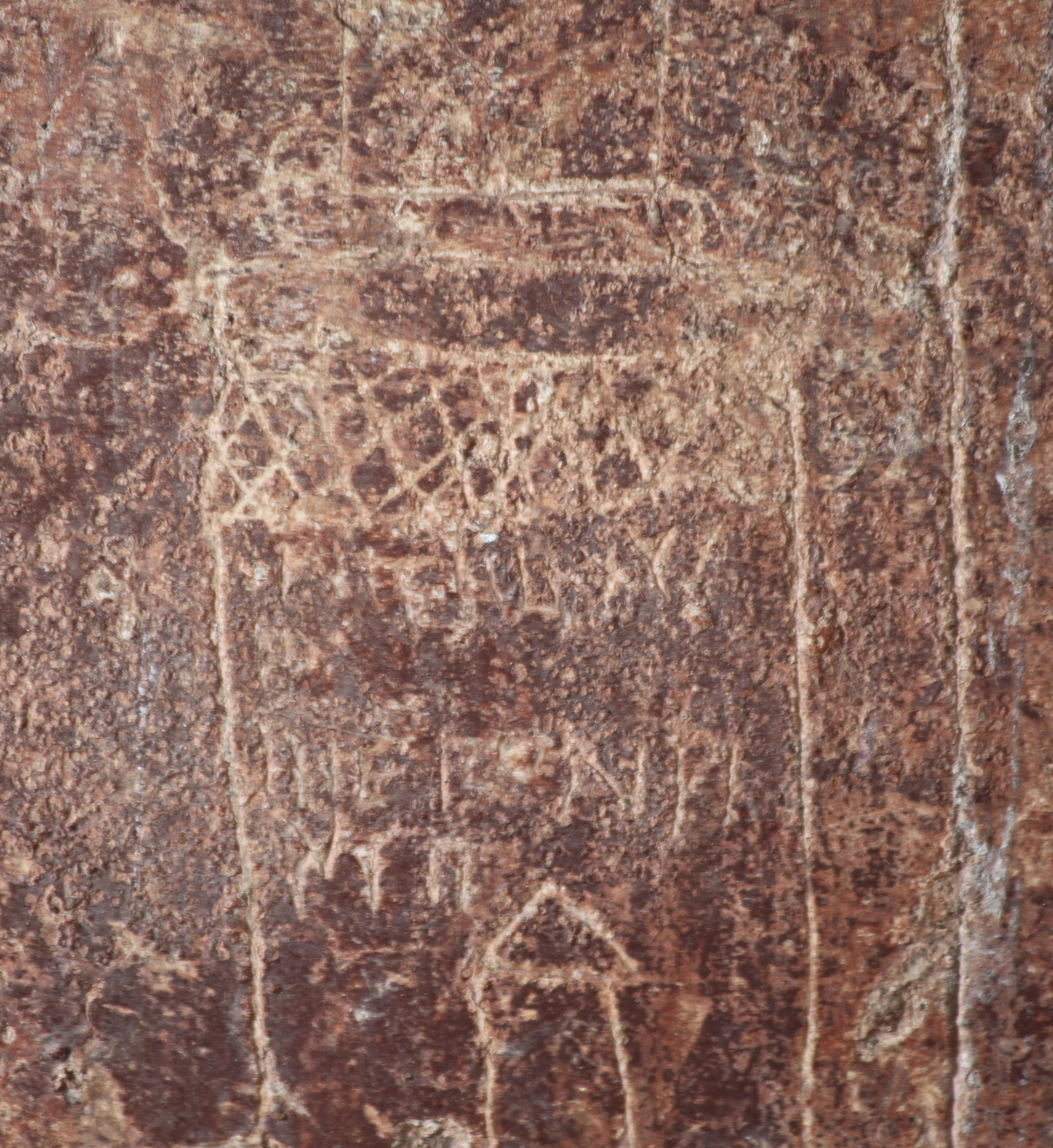

- Harp 2015 (detail of the base)

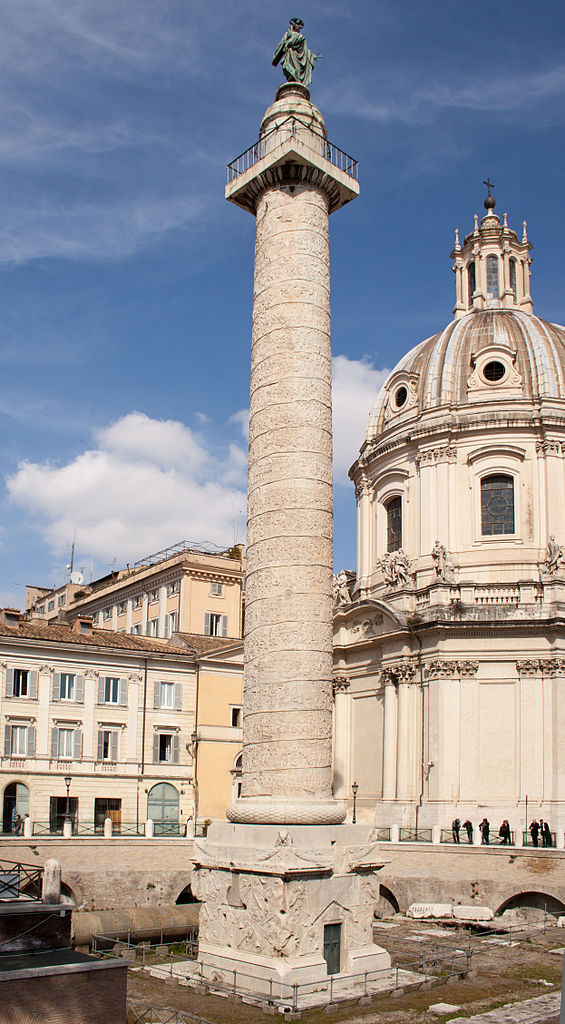

- The real column (Wikimedia)

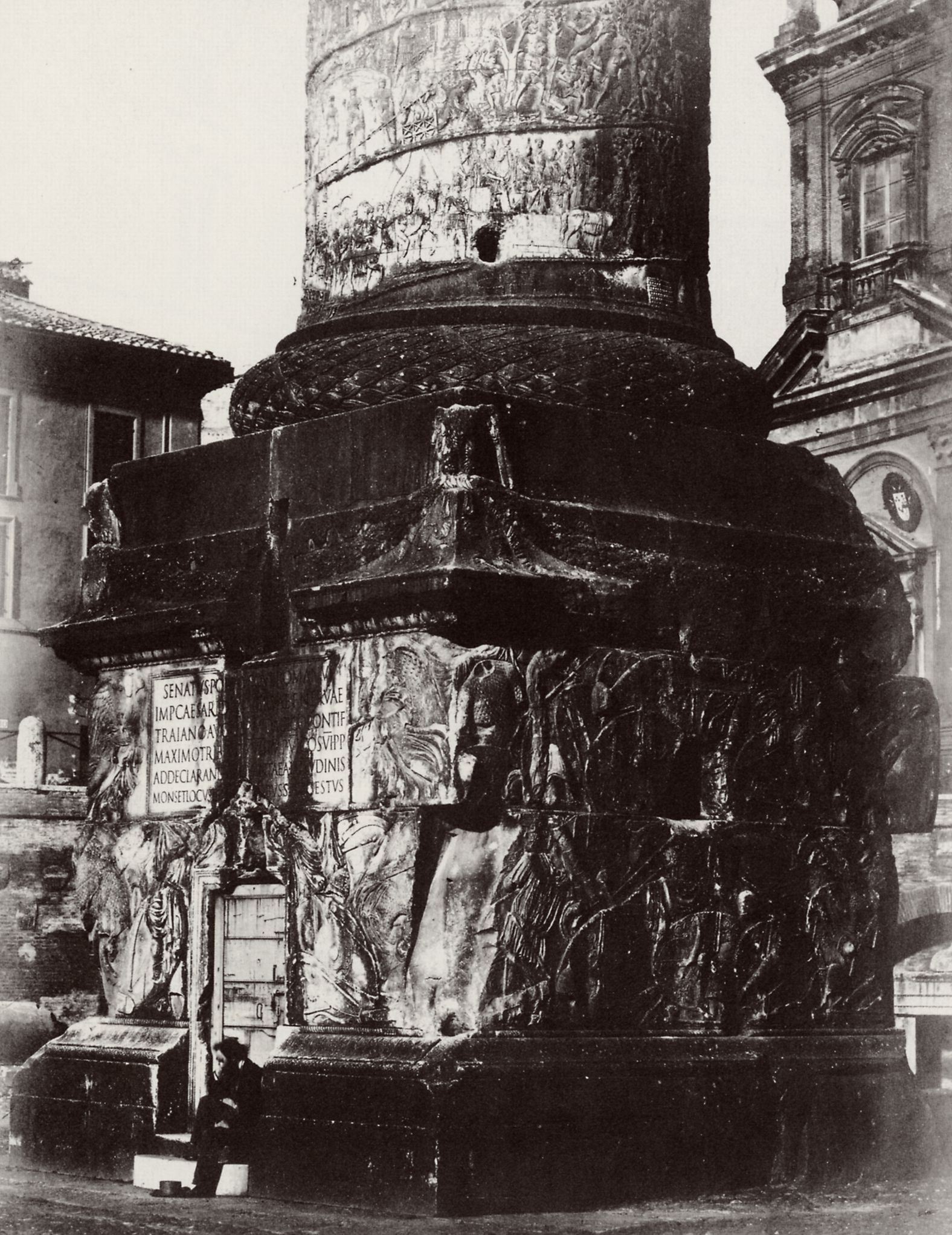

- Photo of the lower part of the real column (around 1860; Wikimedia)
G0744 - A LIGHTHOUSE (B)
- Porticus, east wall, against room 20: a lighthouse and the number CXXV top left.
Interpretation: the lighthouse is slender, suggesting that it is the Pharos of Alexandria rather than the lighthouse of Portus.
- Eric Taylor
- Harp 2015
G0745 - A COLUMN (C)
- Porticus, east wall, against room 20.
Interpretation: a column with a rectangle on top and a band with X's in the lower part.
G0230 - A LIGHTHOUSE (D)
- Porticus, east wall, against room 20.
Interpretation: a wide lighthouse with only a few floors; presumably the lighthouse of Portus.
- Eric Taylor
- Eric Taylor
- Animation, Eric Taylor
- Harp 2015
G0390 - A LIGHTHOUSE (E)
- Porticus, east wall, against room 20.
Interpretation: a wide lighthouse with only a few floors; presumably the lighthouse of Portus.

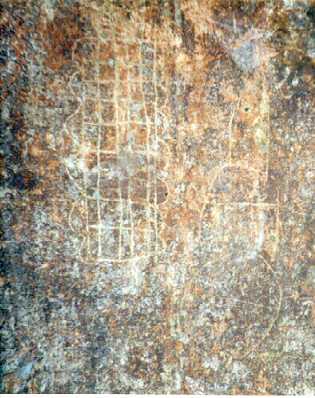

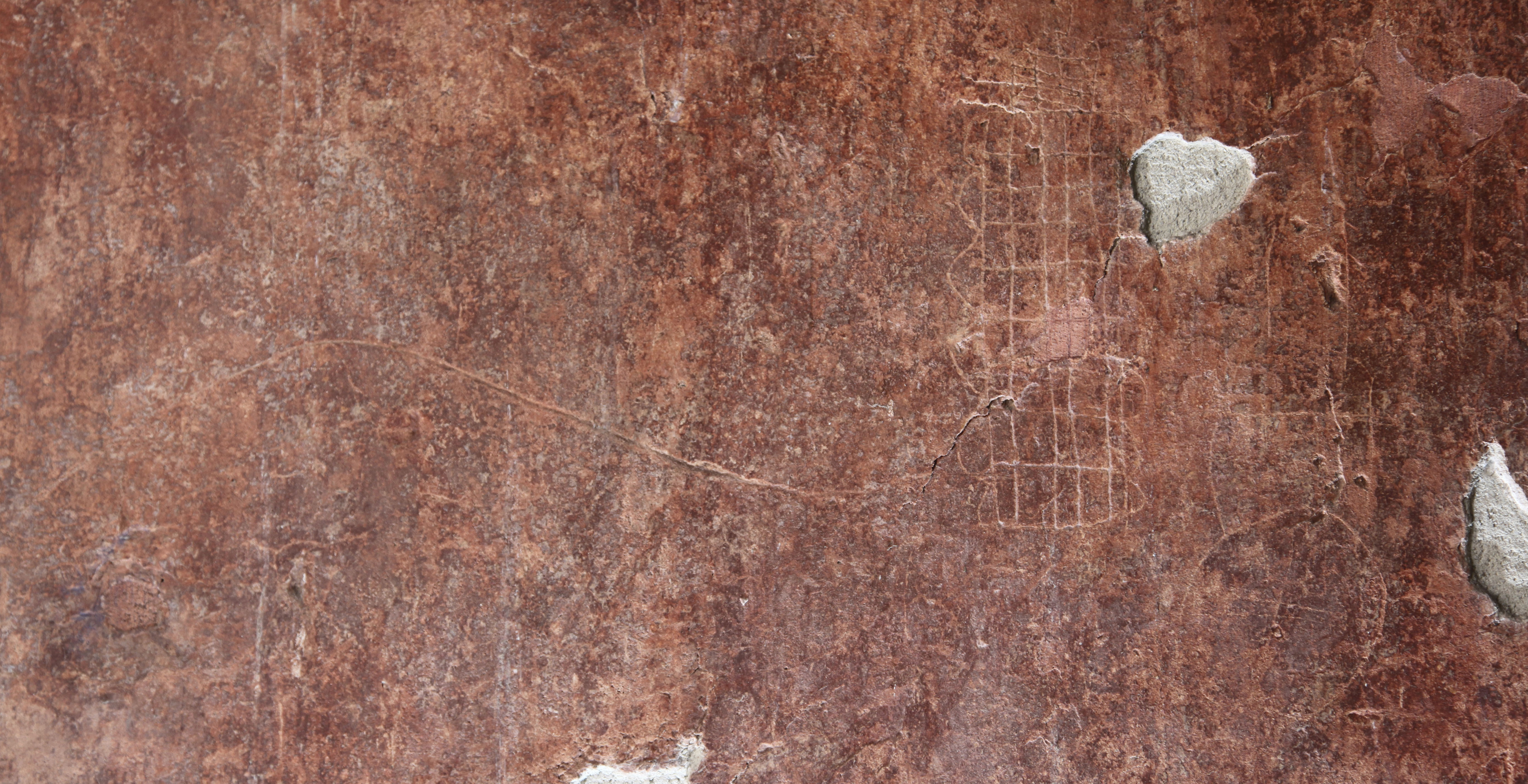

G0229 - A GRID AND A CIRCLE
- Porticus, east wall, against room 20, to the left of the monuments.
- See the quote of Raissa Calza at G0228.
- Eric Taylor
- Harp 2015
G0237 - A STACK OF NUMBERS
- Porticus, east wall, against room 20, to the left of the monuments. Perhaps:
CX
CXX
CA
CX
CIX
CXA
CXXXX
CXXIII
[-]XMI
- Animation, Eric Taylor
- Harp 2015
G0746 - A NUMBER
- Porticus, east wall, against room 20: CCC XXV.

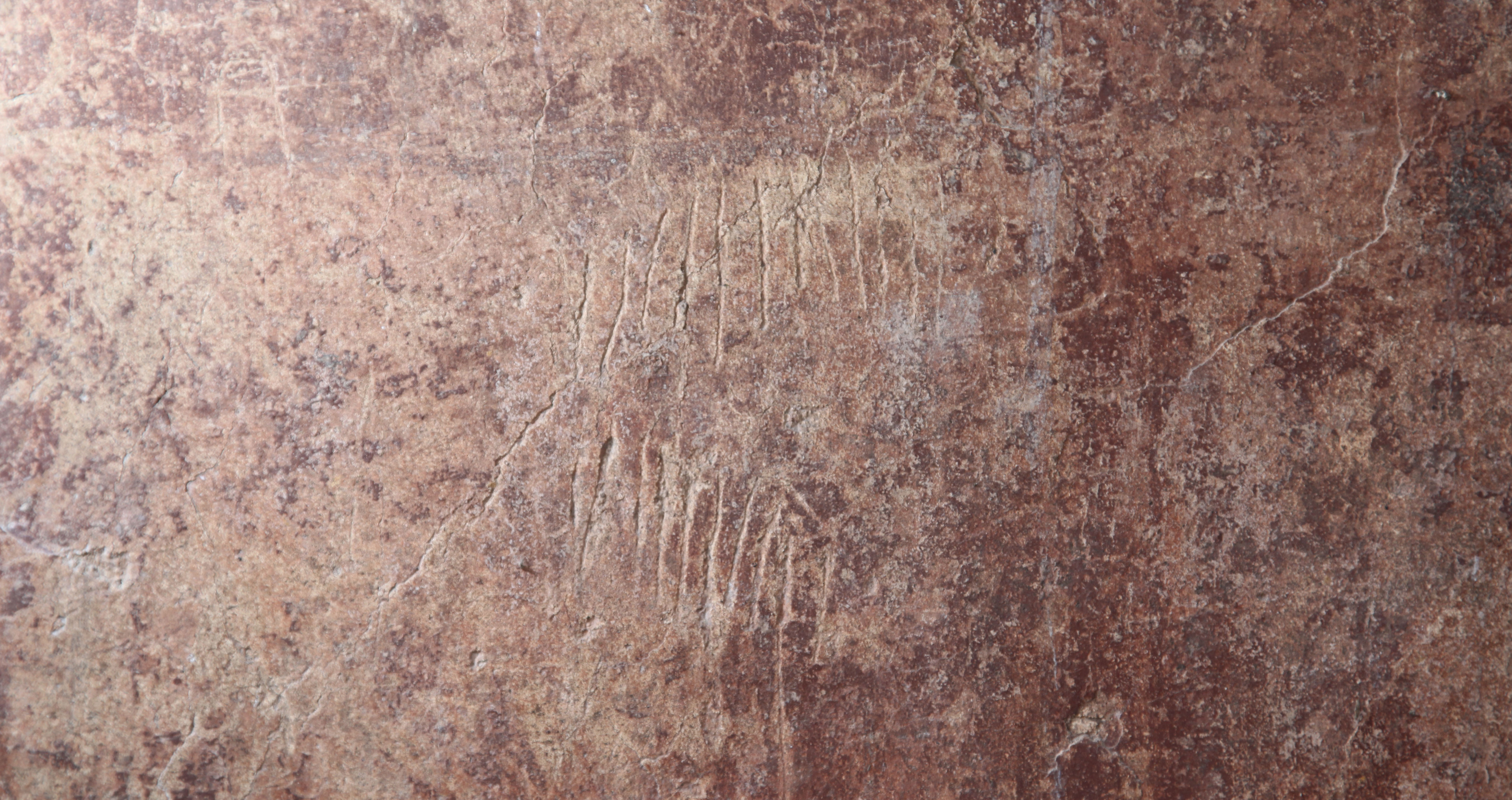

G0747 - TALLY MARKS
- Porticus, east wall, against room 20.
G0748 - TALLY MARKS
- Porticus, east wall, against room 20.

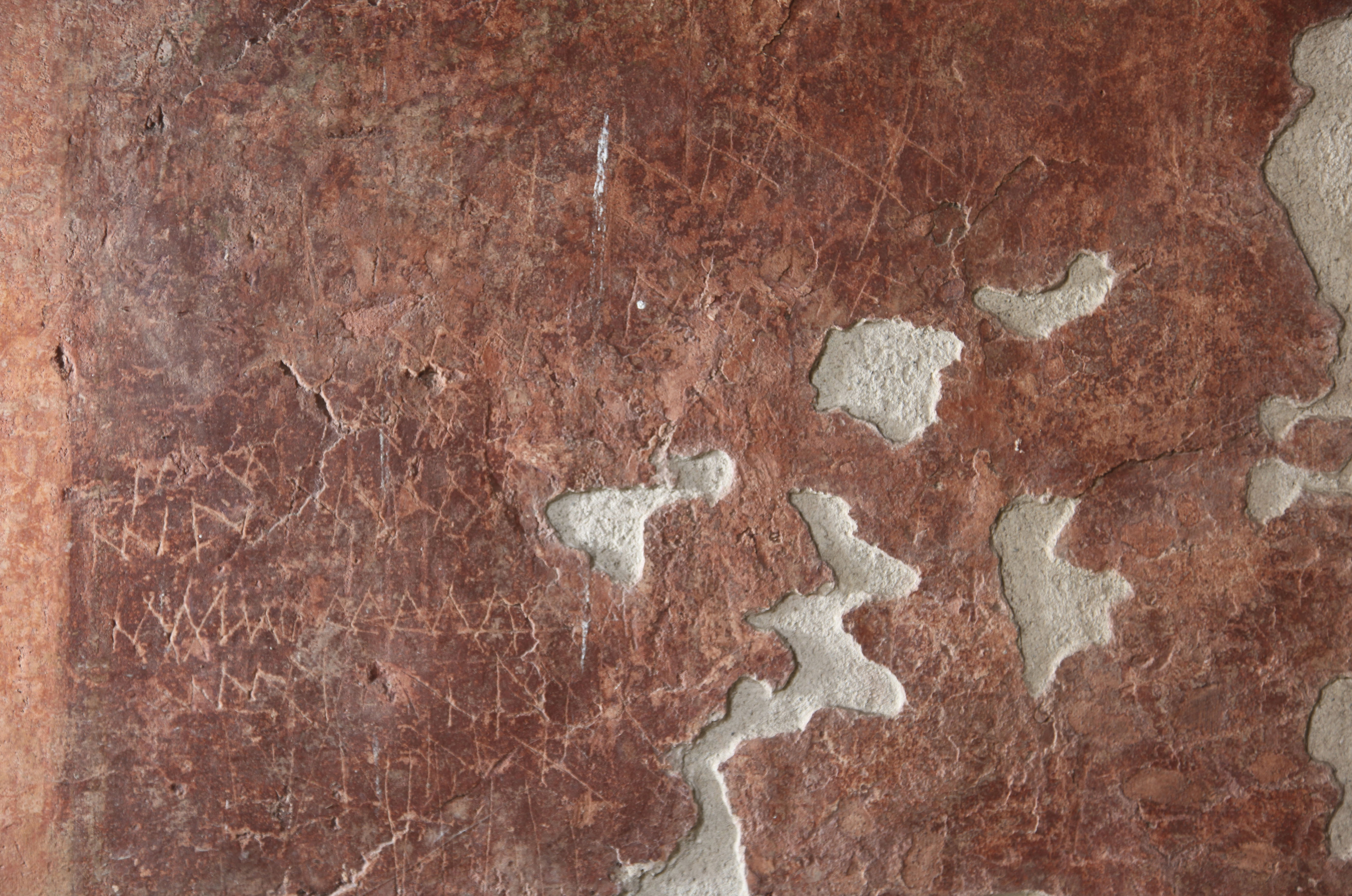

G0239 - X'S AND A ZIG ZAG PATTERN
- Porticus, east wall, against room 20, below G0228.
- Animation, Eric Taylor
- Harp 2015
G0232 - X's
- Room 3.
G0749 - TEXT
- Room 5, north wall.
G0750 - TEXT
- Room 5, north wall.
G0751 - TALLY MARKS
- Room 5, north wall.

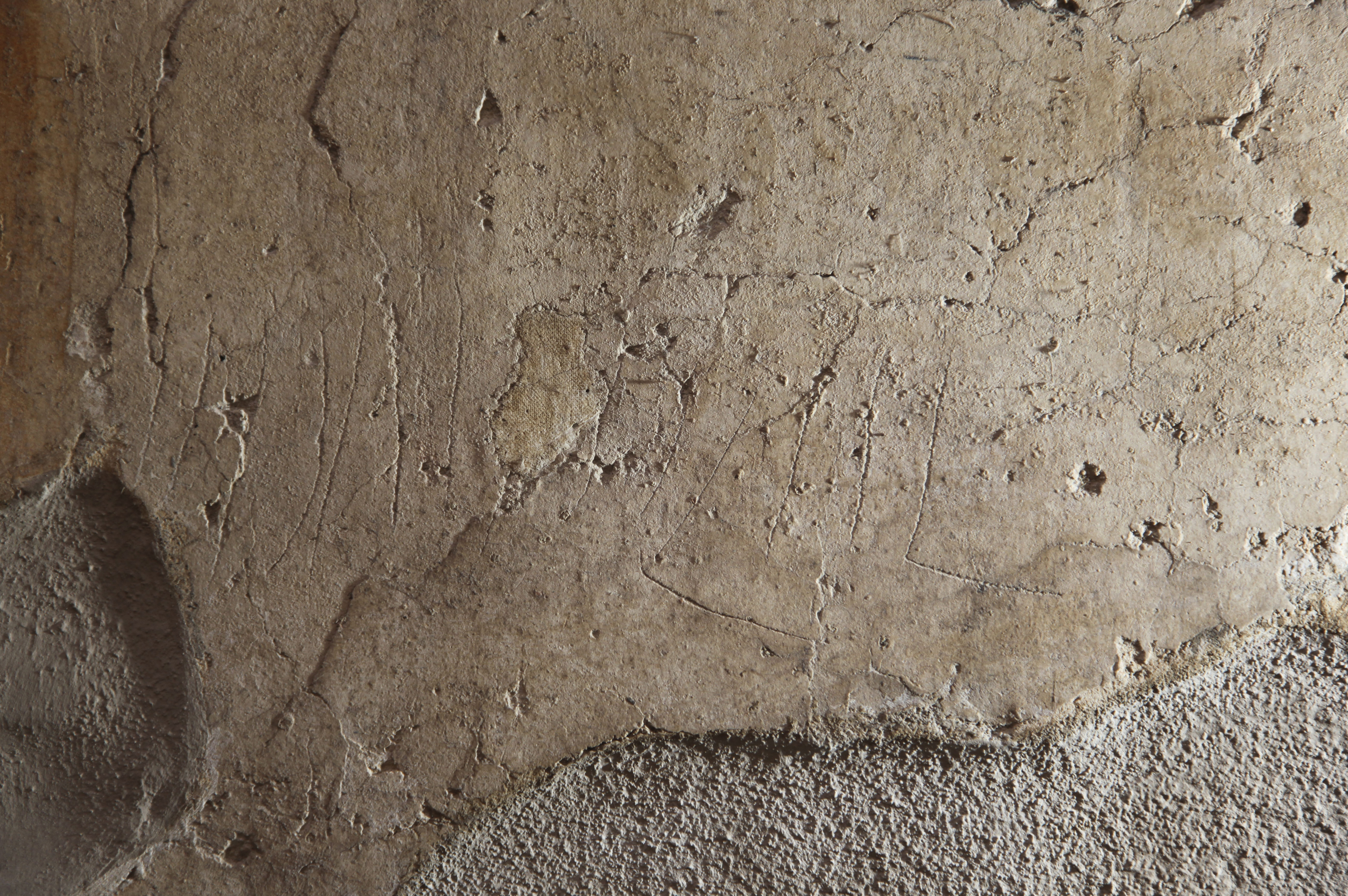

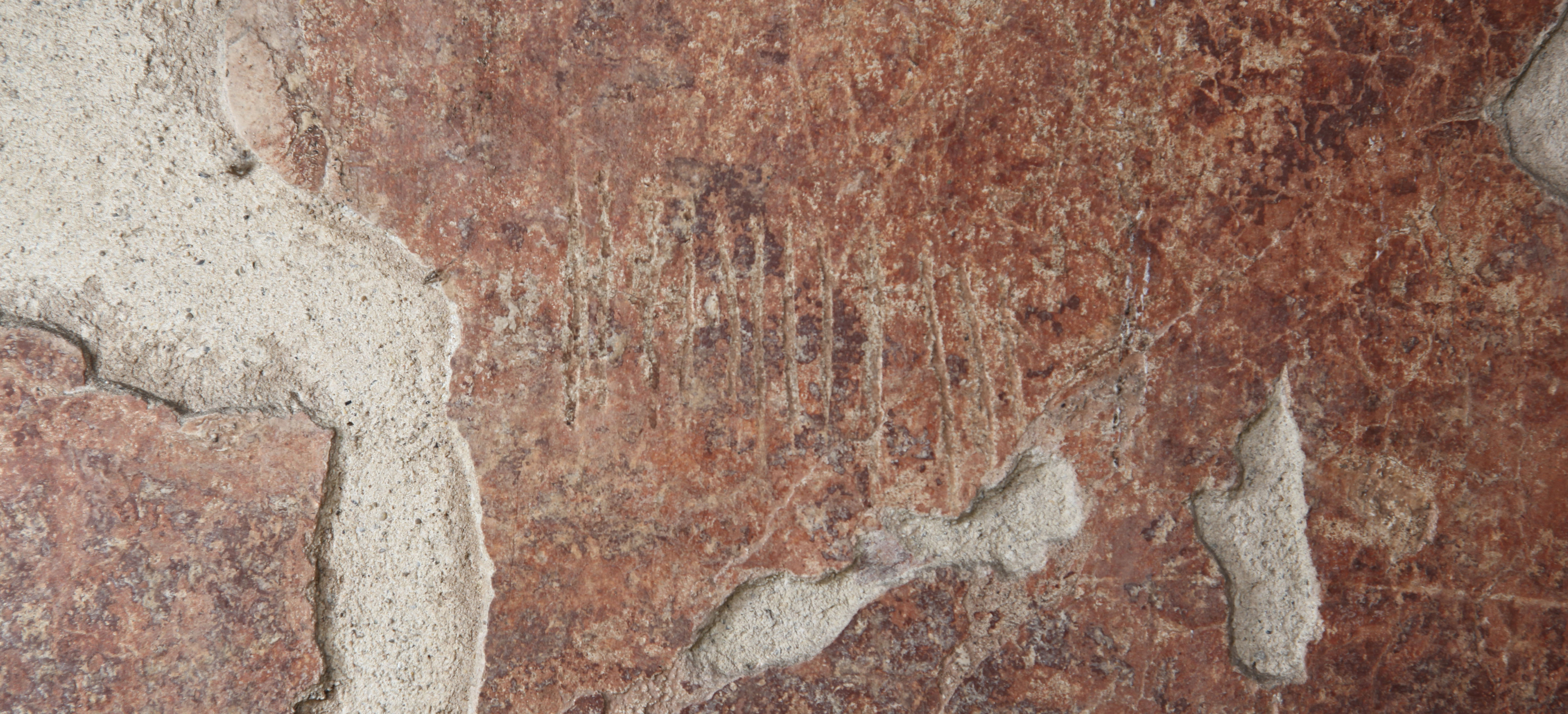

G0235 - TALLY MARKS AND TWO L'S
- Room 16, west wall.
- Animation, Eric Taylor
- Harp 2015

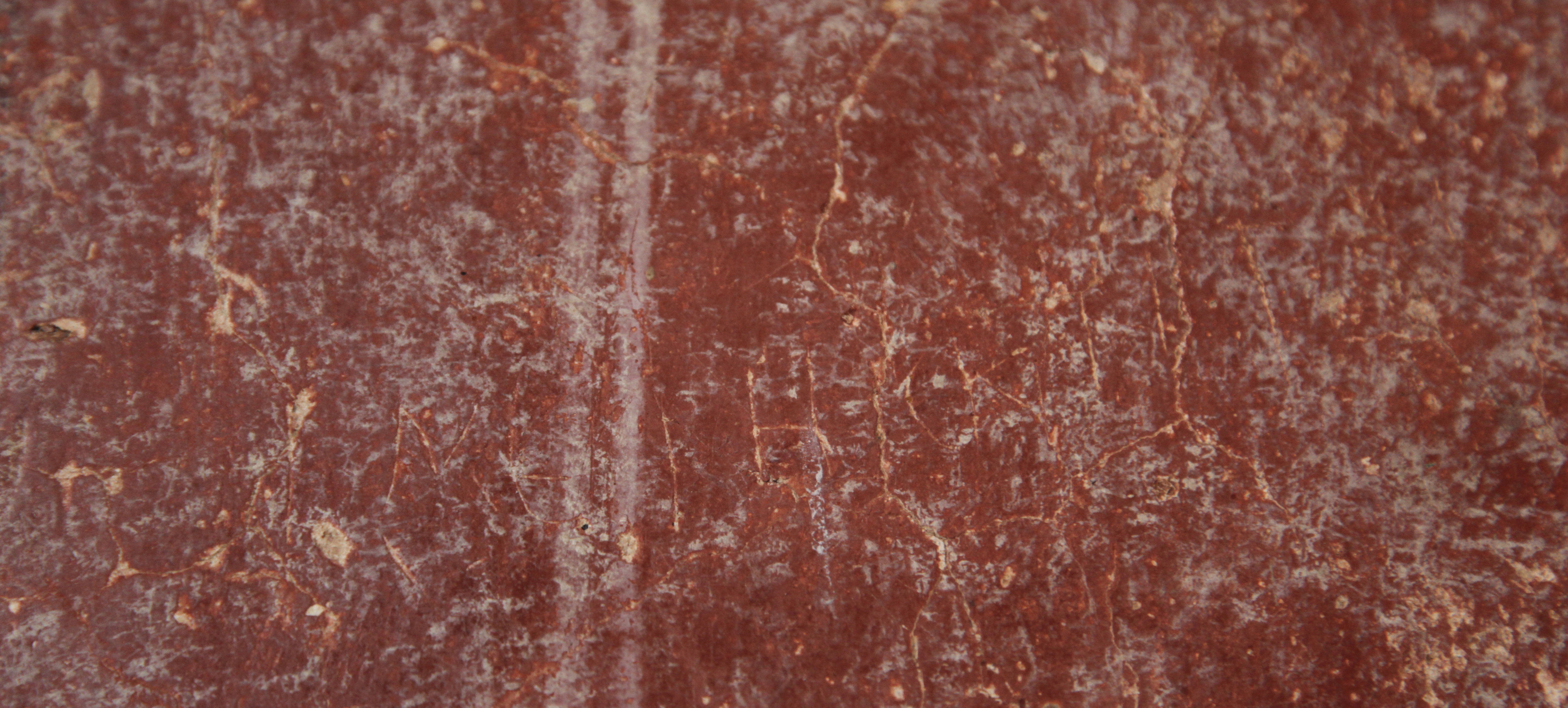

G0236 - CANCELED TEXT
- Room 16, east wall.
- Animation, Eric Taylor
- Harp 2015

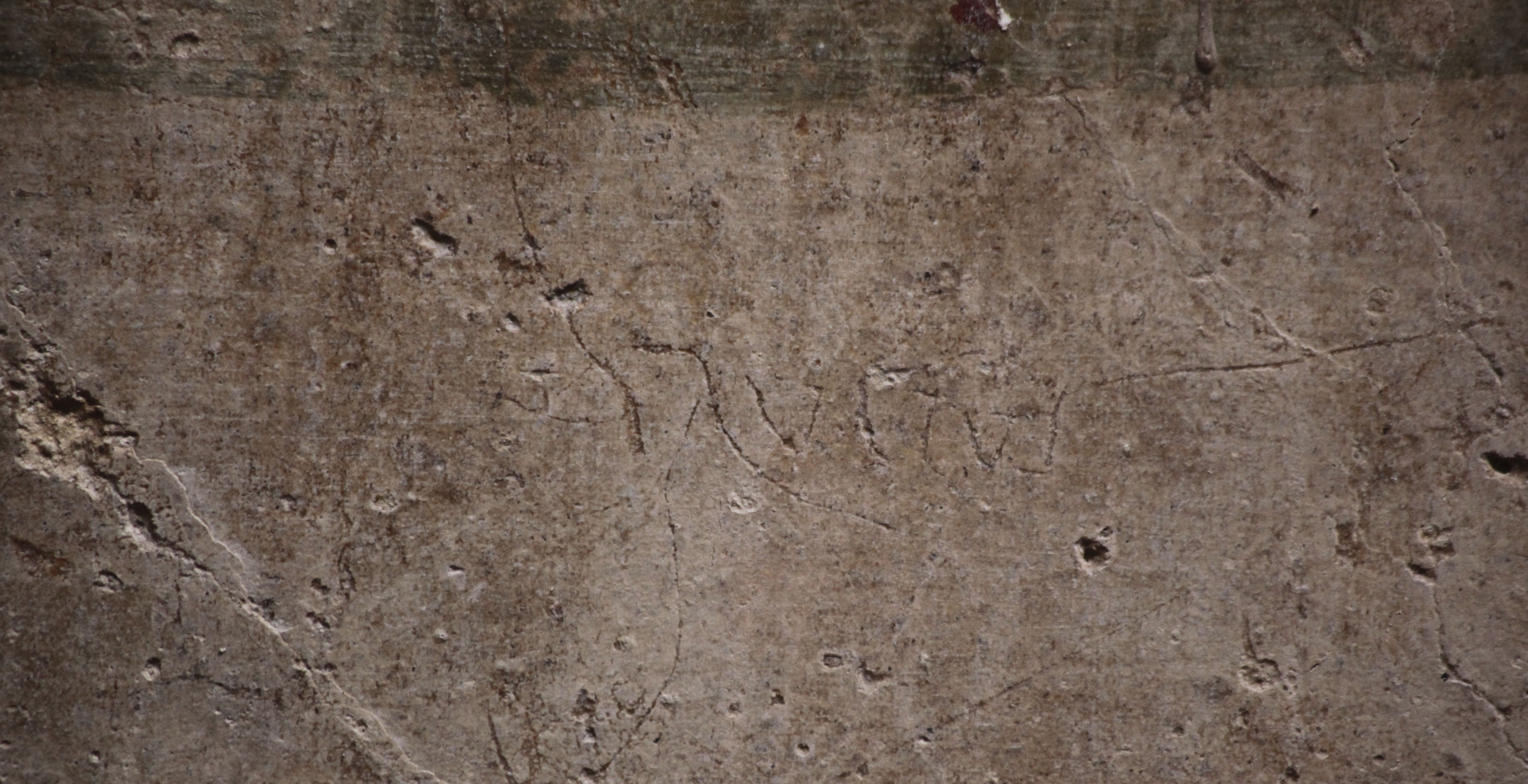

G0231 - LATIN TEXT
- Room 16, east wall.
- Solin 1967, Tav. 57c: DRVCTVS.
Interpretation: there seems so be a small s or u before the word read by Solin. Before the r only f or t seems to work.
CETERA
- G0752. Porticus, east wall, against room 20. Harp 2015. Modern?
- G0753. Porticus, east wall, against room 20. Harp 2015. A sail?
- G0754. Porticus, east wall, against room 20. Harp 2015. A column?
- G0755. Porticus, north wall, east doorjamb of room 4. Harp 2015.
- G0234. Room 10, south wall. Animation, Eric Taylor, Harp 2015.
- G0240. On a pier in the north-west corner of the building. Animation, Eric Taylor.
- G0241. On a pier on the north side of the Via delle Volte Dipinte. Animation, Eric Taylor.
- G0246. On a pier on the corner of the Via delle Volte Dipinte and the Strada Privata. Animation, Eric Taylor.
- G0389. Langner 2001, nr. 2221. Left wall of vestibule I. At 1.10 from floor, h. 0.59, w. 0.49. Langner.
