Regio I - Insula XII - Caseggiato della Cisterna (I,XII,4)

In the House of the Cistern four units can be recognized:

Click here to open a detailed plan of the building in a new window.

The Hadrianic remains

In the north part of the building are a few remains of a very large octagonal room from the Hadrianic period. The room contained four large semicircular niches, starting at floor level. The north-east one was obliterated by Exedra I,XII,3, the north-west one is badly preserved and overgrown. The south-west niche - with the exception of the west part, the reconstruction of which is hypothetical - and especially the south-east one - in which an oven was installed - are preserved quite well, with a maximum height of a few meters.

The brick walls have a thickness of 0.60. The lower part of the walls shows the core of the wall over a height of 0.40. In the surrounding rooms the Hadrianic facing continues up to the present floor level. The sides of the octagon measure a little over 20 feet of 0.296 (average length 6.02), created by the openings of the niches, wide passages between the niches, and walls 1.07 long on either end. The latter sections partially block the openings of the niches. The diameter of the room, from one corner between the short sections to another, must have been approximately 14.50. In the south part of the south-west niche is a doorway. The jambs show the core of the wall over a height of 0.92. Apparently this was originally a window, later changed into a doorway. In the east part of the south-east niche is an opening with a lintel arch. This opening was blocked, on the inside with brick masonry that is identical to the masonry of the niche, on the outside (in a shop) at a later date (bricks and small tufa blocks). This was either a doorway or a window. In the corner between the two short sections on either end of the wide passage between the south-west and south-east niche is some rubble masonry, probably foundations for columns.

Parallels for this kind of octagonal room can be found in Imperial buildings from the first to the third century AD. They are in the Domus Flavia on the Palatine, in the Piccole Terme and Piazza d'Oro in the Villa Hadriana, and again in Rome in the Baths of Caracalla and of Diocletian.

For the function of the room in the Caseggiato della Cisterna we have two clues. The missing facing of the lower end of the walls suggests a hypocaust. To the west, below the Foro della Statua Eroica, the remains of a Hadrianic bath have been found. Was the octagonal room perhaps the vestibule of the bath, slightly heated by the air that had passed through the actual bathing rooms?

In the south part of the buidling the remains of a Hadrianic arcaded courtyard can be recognized. To the east, along Semita dei Cippi, is a row of shops.

Plan of the octagonal room

Plan of the octagonal room.
From Bakker 1999, fig. 30.

The bakery

In the northern half of the building a bakery was installed, to which some opus latericium seems to be related. On the floor of room 1 are some basalt blocks. In the west part of the tiny room 2 is a basin, widening towards the north. In the east part is a structure looking like a tiny oven. On top of a podium (h. 0.35) is a small cupola (inside diam. 0.60), made of pieces of brick and tufa, opening towards the north (w. of opening 0.38). The area to the south might be called room 3. In the east part is the best-preserved Hadrianic floor-niche. In the niche a large oven was installed. When the oven was built, two walls in the opening of the niche were partly removed. The brick podium of the oven (h.0.98) is protruding from the niche. In the front of the podium is a deep floor-niche or hole. The opening of the oven was towards the west. The first ring of the cupola, made of large tufa blocks, has been preserved (inside diam. west-east 4.00, north-south 4.20). There are some basalt blocks on the floor of this room, and on the floor of rooms 4, 5, and 6. Many basalt blocks and parts of other objects have been piled up in room 6. In the north-west corner of the shop to the east of room 3 is part of a kneading-machine, including part of a hole for the insertion of a blade. In the late 1990's further excavations were carried out in Exedra I,XII,3. Several rooms with floors of basalt blocks were found, some with the imprint of hooves.

A basin, floors of basalt blocks, a large oven, and part of a kneading-machine indicate that a bakery was installed here. Its size and history are obviously problematic. Heres suggests a date in the last quarter of the second century for secondary piers in room 5. Recent excavations have shown that it was a large bakery, that evidently stopped functioning after the building of Exedra I,XII,3, in the middle of the fourth century. The northern part of the building has a total area of roughly 640 square metres. Four pairs of piers on Semita dei Cippi suggest a connection with building V,V,3, that looks like a commercial building.

The water-wheels and cisterns

In the southern half of the Hadrianic courtyard a large cistern (b) was installed, at two levels. This may have taken place between the end of the second and the fourth century (opus latericium and vittatum). The lower part could contain 80.000 litres. The cistern was partly supplied by the aqueduct, and partly by two water-wheels (a). It seems to have served quite a large area of the city.


Photographs



The oven in room 3 seen from the west. Photograph: Jan Theo Bakker.

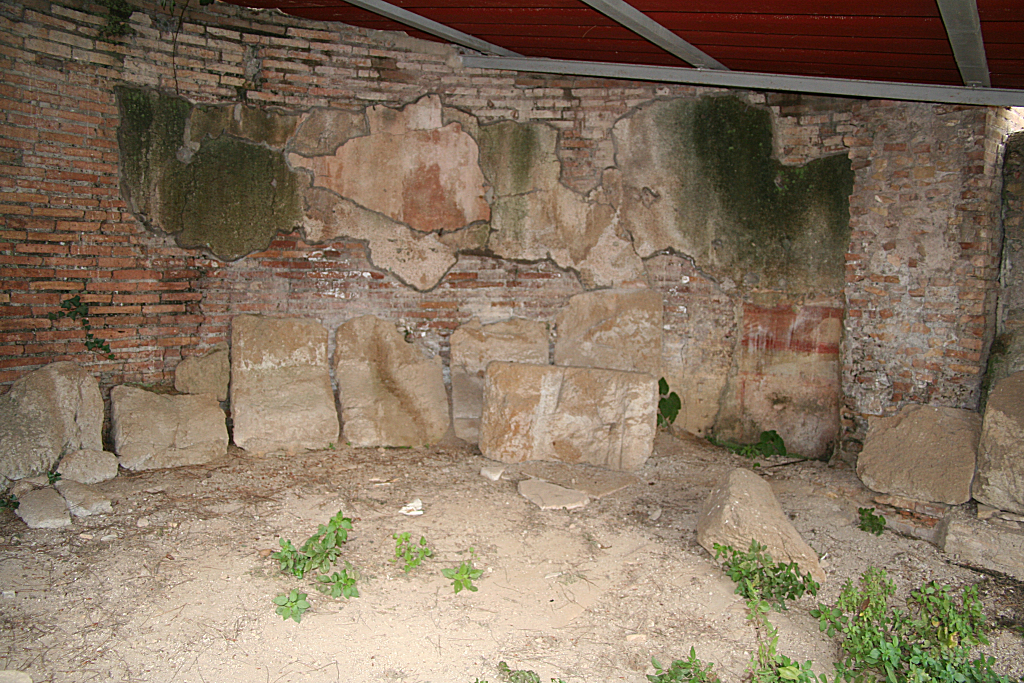

The interior of the oven in room 3. Photograph: Jan Theo Bakker.

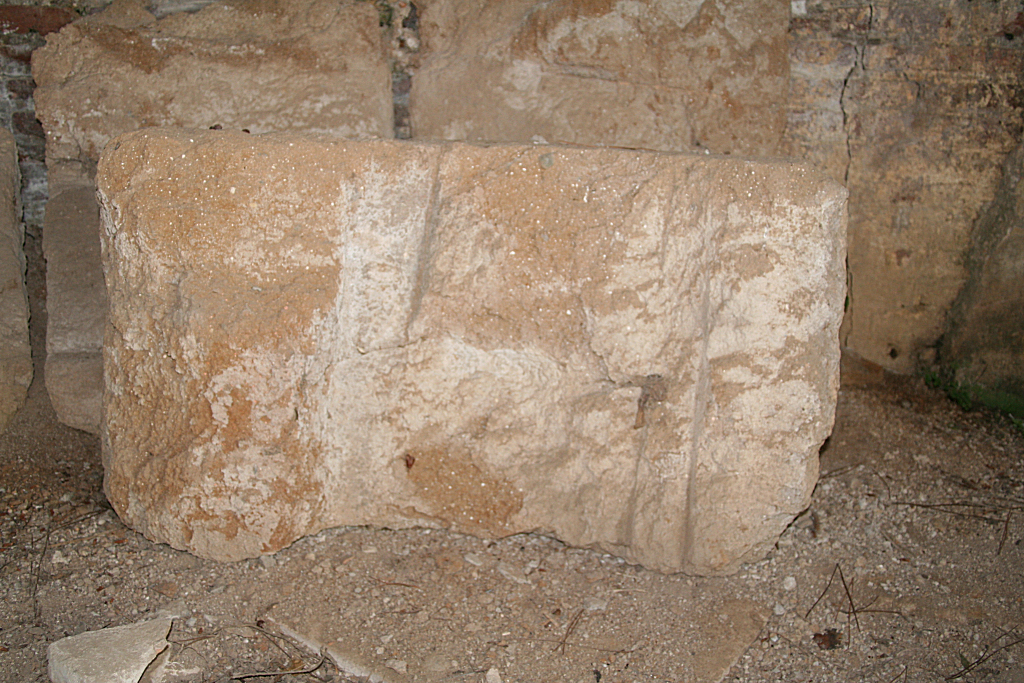

A tufa block belonging to the base of the oven (fallen over) with grooves,
possibly testifying to a rotating grate. Photograph: Jan Theo Bakker.

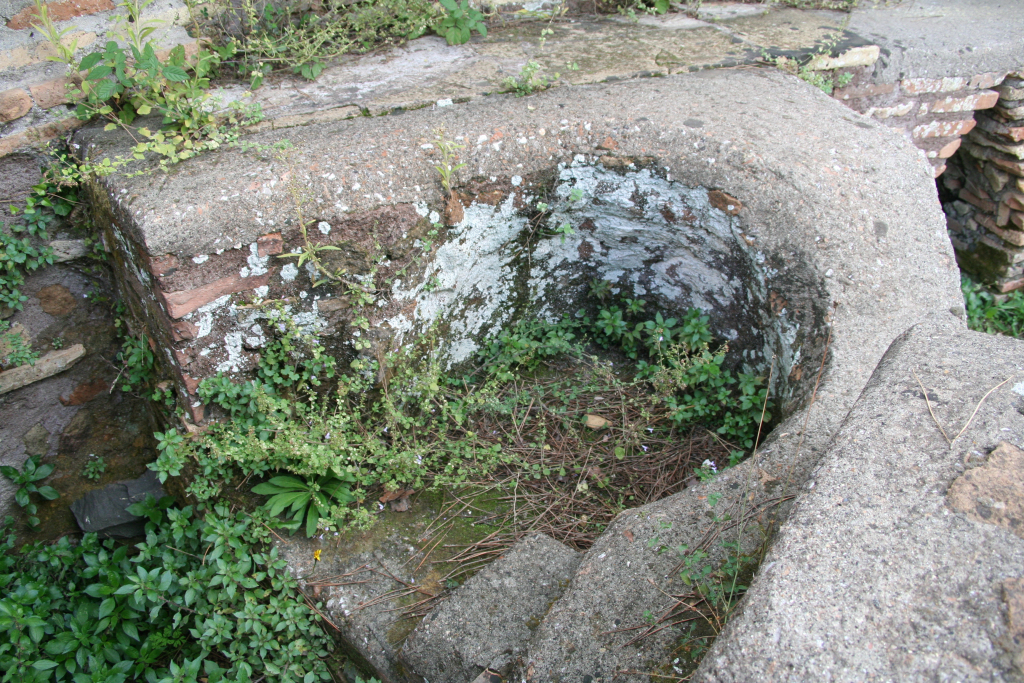

The tiny oven (?) next to the large oven. Photograph: Jan Theo Bakker.
