Regio III - Insula II - Sacello delle Tre Navate (III,II,12)

The Shrine of the Three Naves was built in the free space between the Caseggiato degli Aurighi (III,X,1) and building III,II,9. It was excavated in 1938. In antiquity it had been filled with building rubble and sherds of amphorae.

The entrance, in a diagonal wall, has a travertine threshold. The right (north-west) wall contains brick piers of the porticus of the Caseggiato degli Aurighi, between which low walls were set. Between the second and third pier from the back was a door, that was later blocked. The left wall is of opus latericium. The ceiling was carried by a large number of small beams at a height of 2.00. It has been restored at the ancient level. Above the ceiling, in the left wall, were windows. In the back is an apse (0.90 deep) of polychrome, red and yellow reticulate. A bench was set against it, on top of which is a marble base for a small statue. The apse is higher than the ceiling of the shrine and may be older. The apse was prolonged through two brick walls. In the left one is a window. On the inside are paintings imitating polychrome marble. On the outside are paintings with, among others, a head with two wings flanked by oscilla. On the floor of the area in front of the bench is a geometric black-and-white mosaic dated to c. 150 AD. In the entrance is a marble threshold. This area did not have a roof.

In the remainder of the shrine are two layers of paintings. The older layer has a white background with red, green and yellow bands. Small panels contain oscilla, heads, festoons, two thyrsi, a cista mystica, a bird and an oinochoe. The later paintings also have a white background with red, green and yellow bands, and floral motifs.

Along the side walls are podia. On the edge are five brick columns, painted red. They are a later addition and may replace wooden columns. Between the podia is a white mosaic with a black border. Near the apse is a depiction of a square altar with a burning fire, a pig, a sacrificial knife, and a krater. More or less in the centre is a rectangular masonry basin, lined with marble. Water was supplied through through a lead pipe with a stamp from 148 AD.

Outside the shrine, next to the entrance, is a single room containing a kitchen, partly sunk into the ground. It was reached along a few treads. To the left is a masonry bench with two floor-niches. To the right, in the back, is a small masonry oven with a round opening, on top of which a cooking vessel was placed (perhaps for warm water, that was mixed with wine). The room has a brick floor.

The room has some characteristics of a mithraeum (especially the podia), but seems to have been dedicated to another deity. Several details are missing, such as the usual niches in the vertical side of the podia and a little well near the entrance. There are no mithraic references in the paintings or mosaic. There are various references to the cult of Dionysus: the krater, the thyrsus, the cista mystica, and a marble head of a young man with a wreath of vine leaves.

The apse may be Hadrianic. Various dates have been suggested for the shrine and the kitchen: c. 150 AD, Severan, or later in the third century.

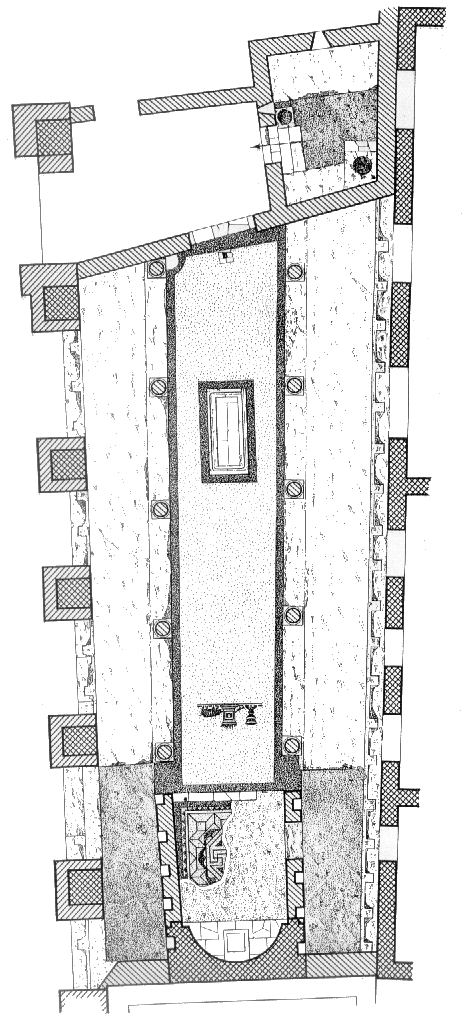

Plan of the shrine. SO II, fig. 15.

Photographs and drawings

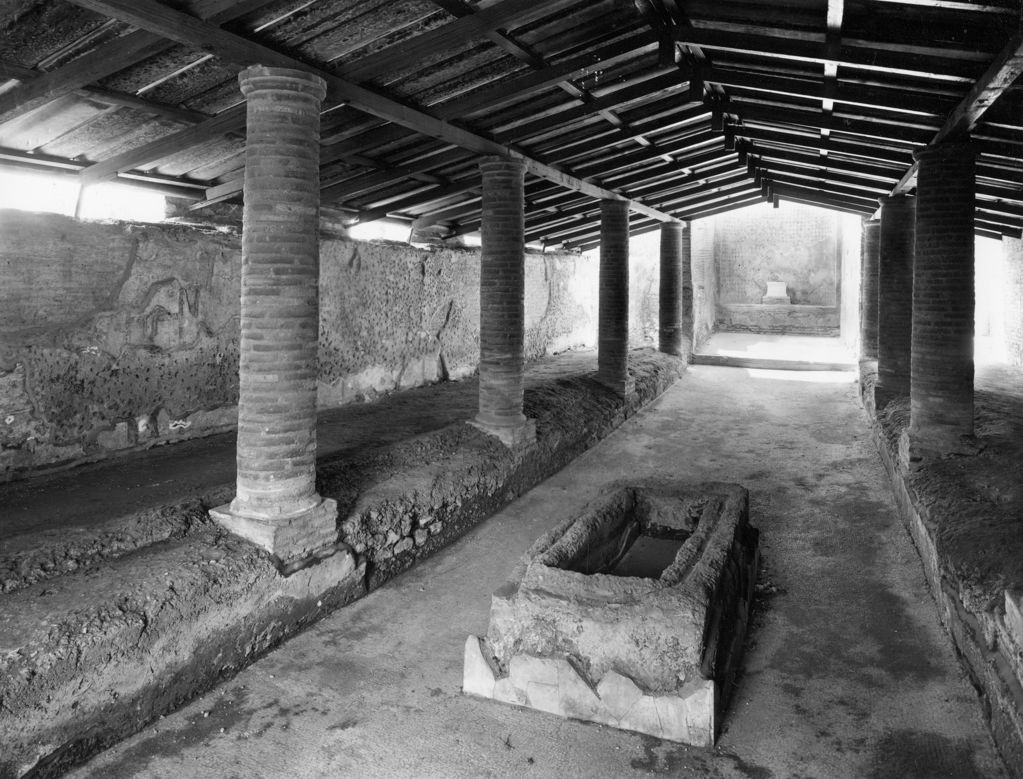

The shrine seen from the north-east. Photograph: Bill Storage.


The mosaic in the back part of the shrine. SO II, Tav. XIV, 2.

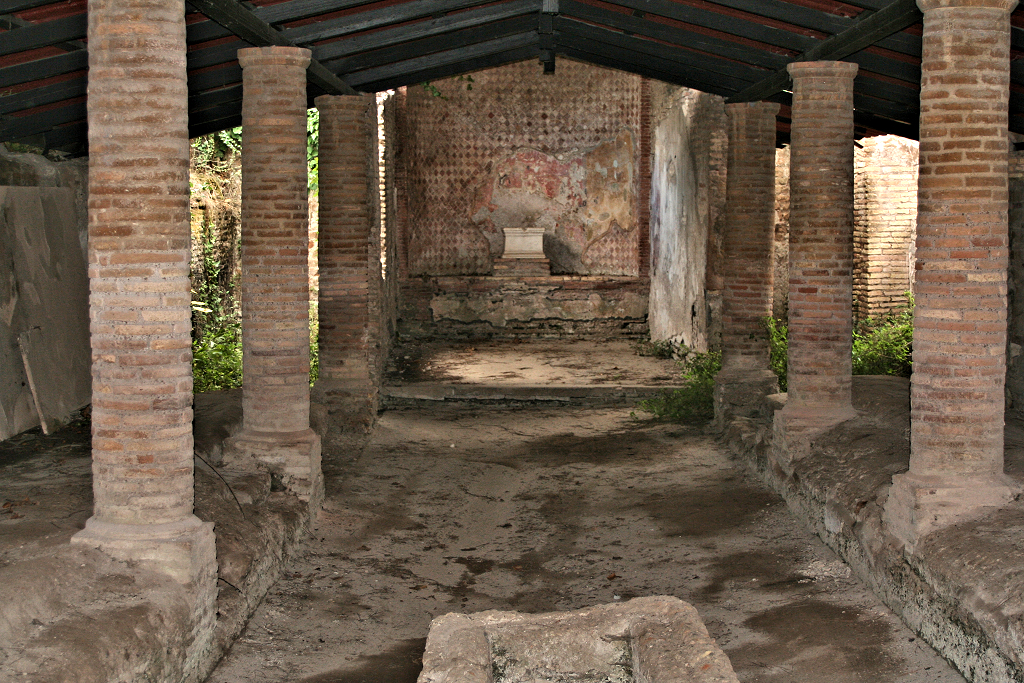

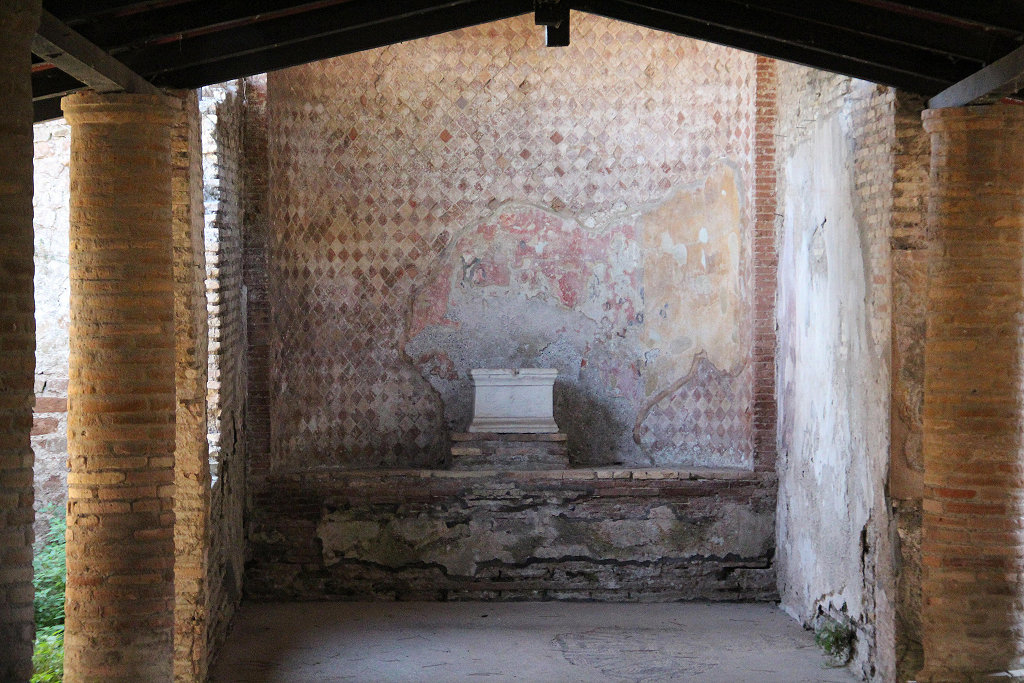

The back part of the shrine. Photograph: Jan Theo Bakker.

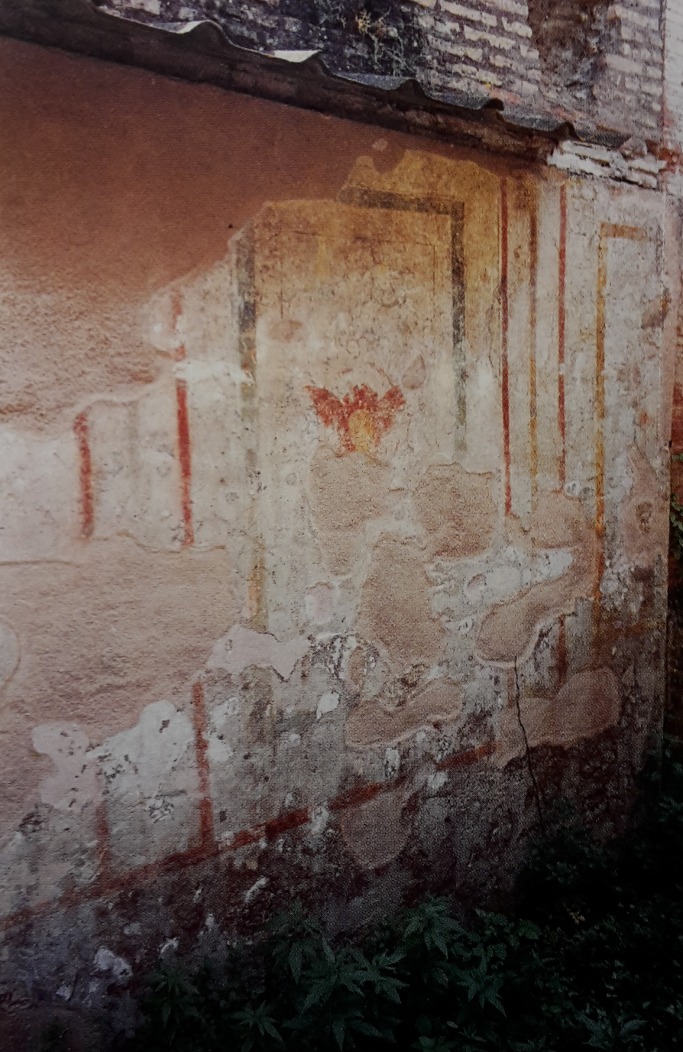

Paintings on the south part of the outer west wall. Photograph: Jan Theo Bakker.

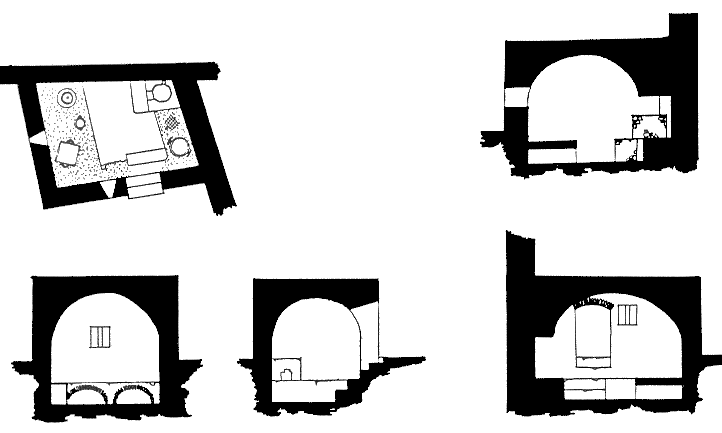

Plan and sections of the kitchen. Clockwise: plan, back wall, entrance, right wall, left wall.
Salza Prina Ricotti 1982, fig. 32.

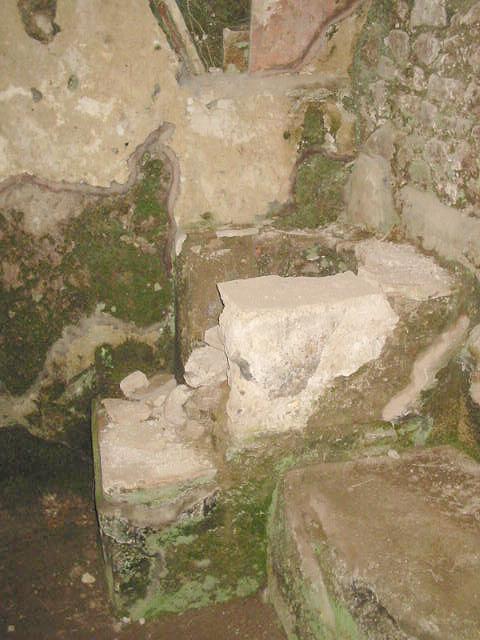

Kitchen, right part. Photograph: Jan Theo Bakker.

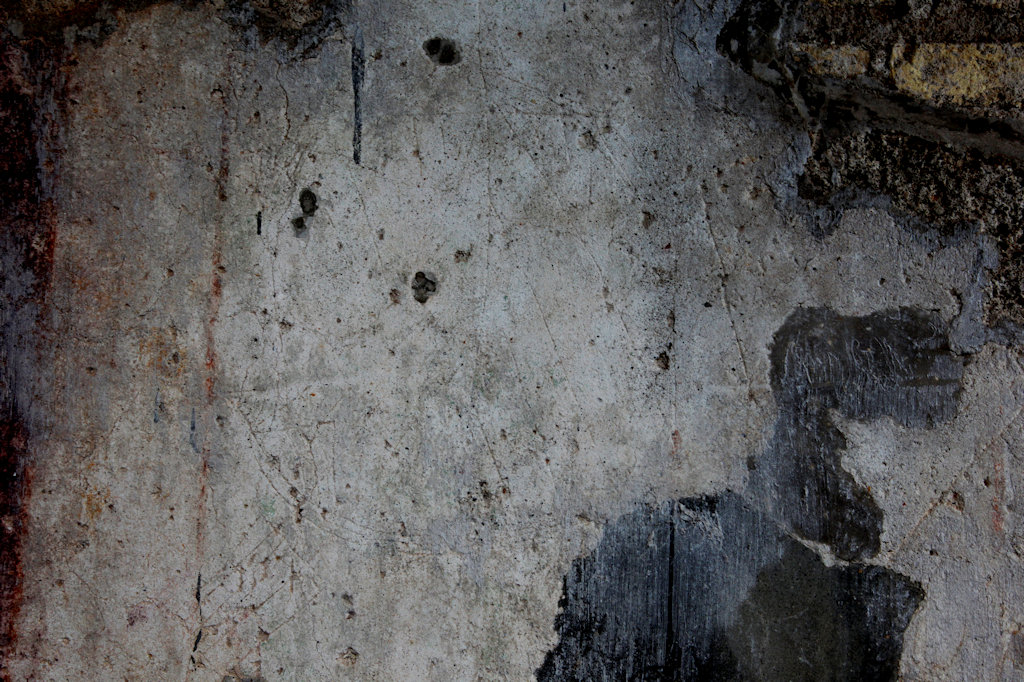

Kitchen, left part. Photograph: Jan Theo Bakker.
